Kitplanes April '02 |
 |
Title Battery Desulfator |
WELCOME TO JIM WEIR'S
Kitplanes Web Page
Kitplanes April '02 |
|
Title Battery Desulfator |
Click on schematic to download (pdf format) Click to download PCB artwork and schematic (if any) in Circuitmaker and Traxmaker format. (zip file)
IMAGES (click on image to download)
 |
 |
 |

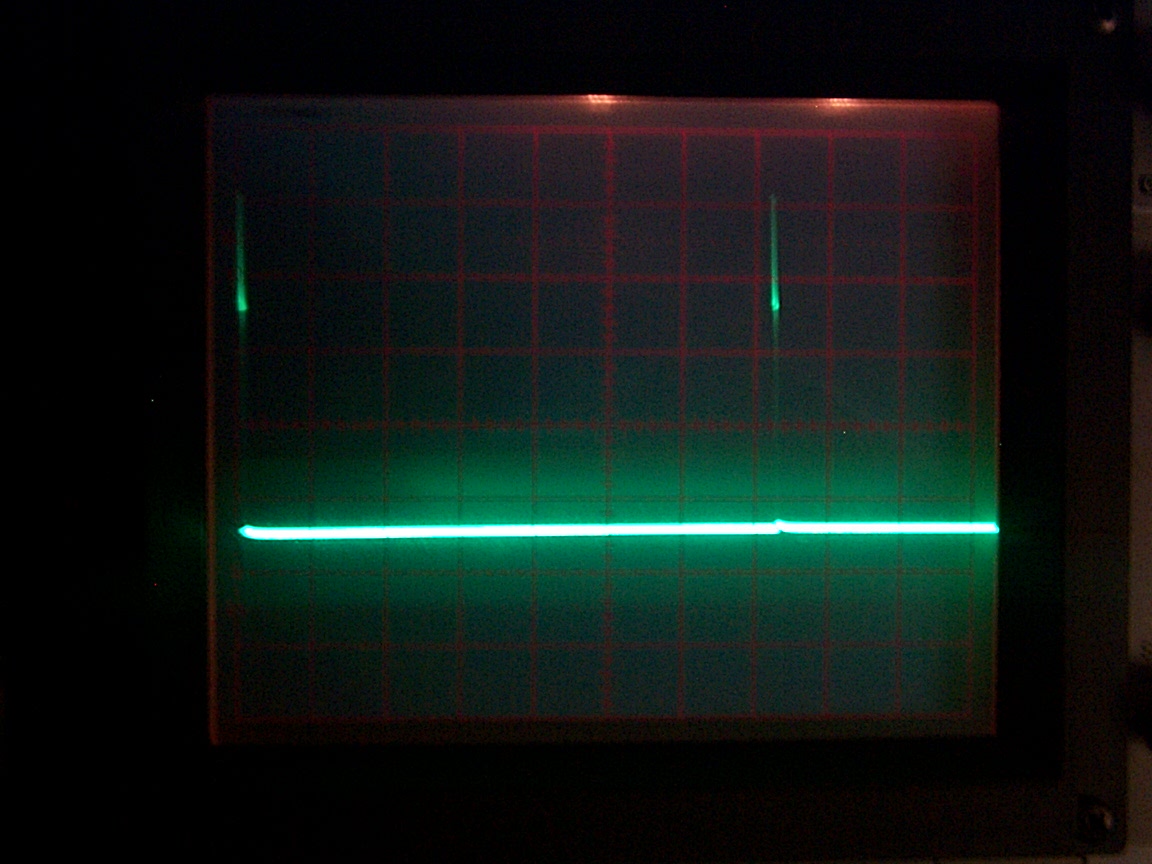

| Pulses at X105 35 volt pulses
returning to 12 volts between pulses |

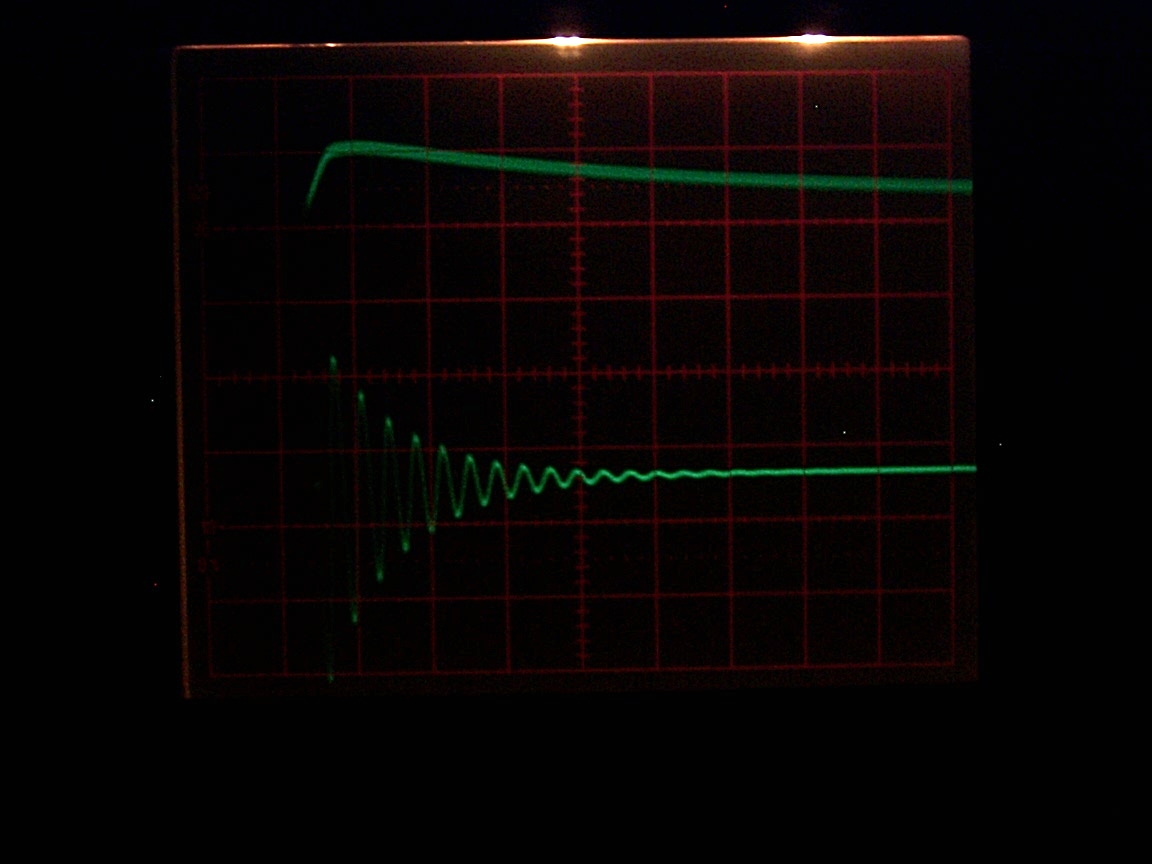

The ringing of a pulse driven into
a battery. Ignore top trace. |

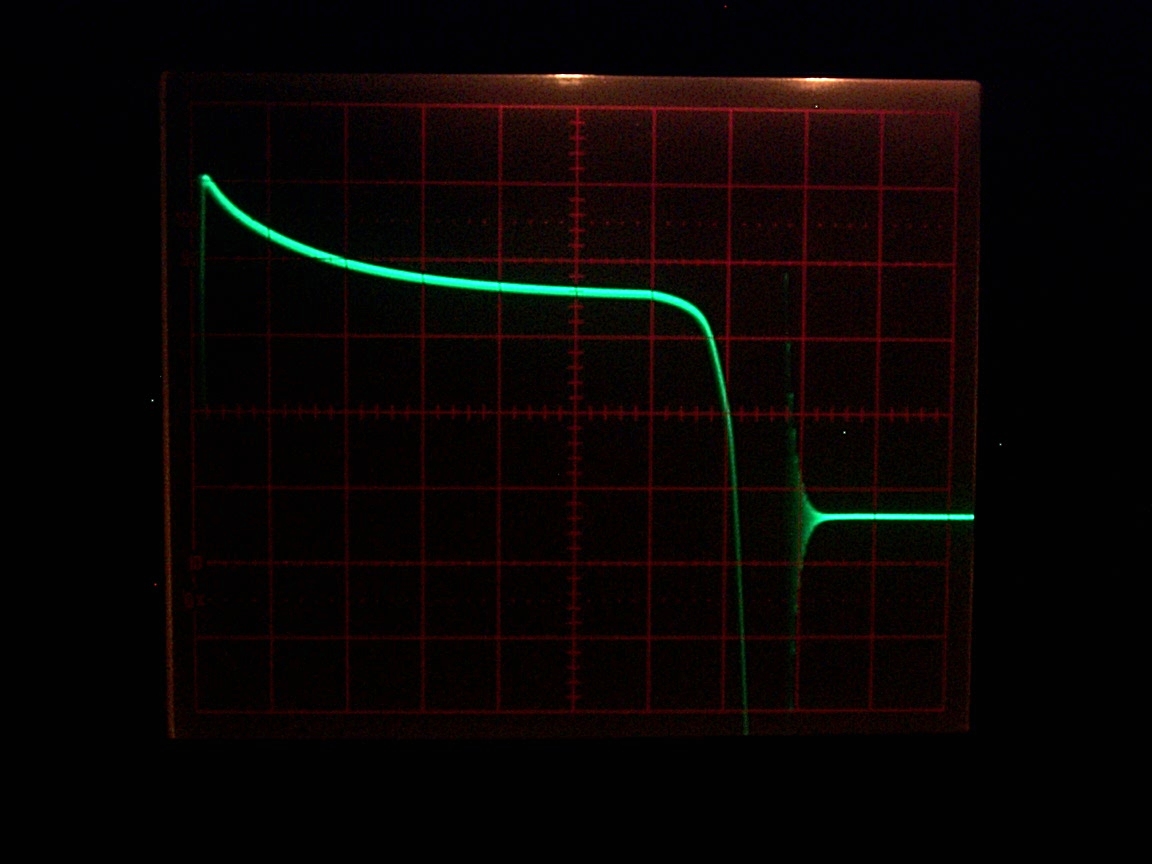

Image 1 expanded horizontally.
Note that the pulse sag from 35 to 25 volts indicates sulfation |
 |
 |
 |

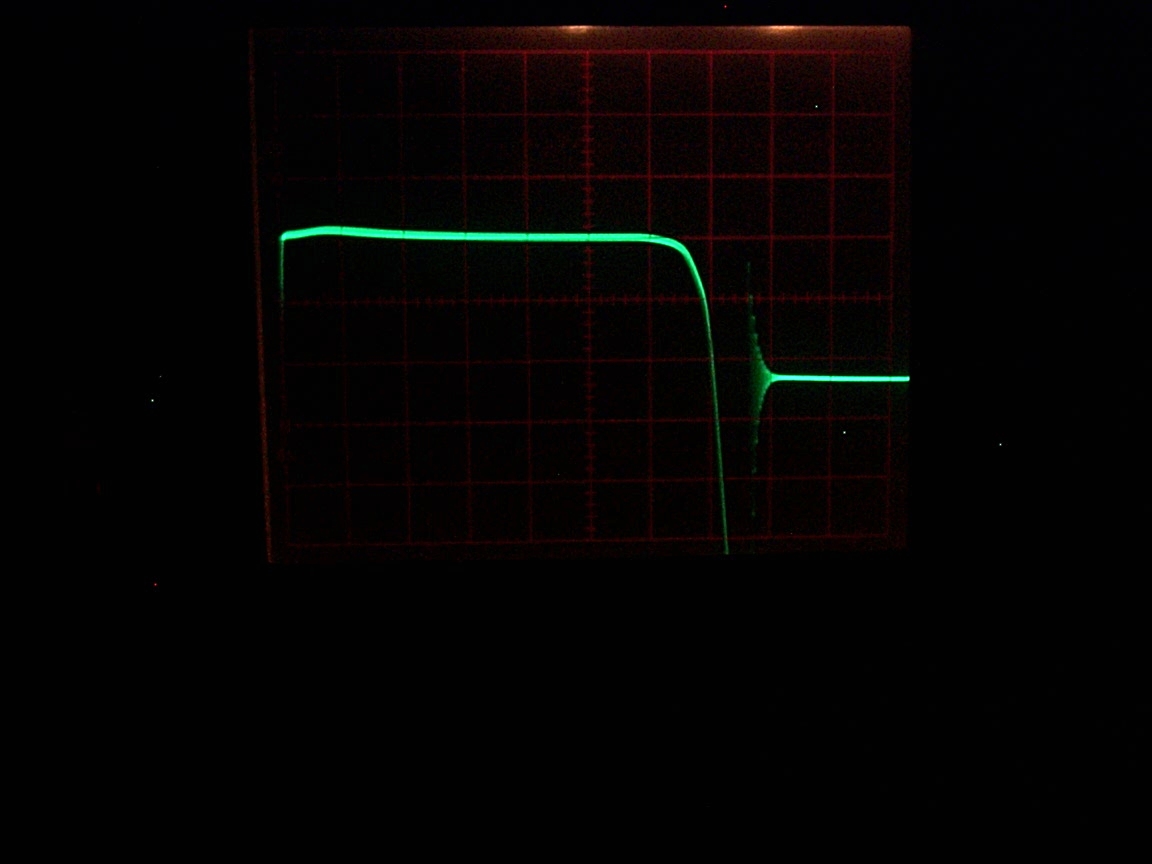

| Waveform of a good battery
having gone through desulfation. Note 20 volt pulse height limitation as opposed to 35 volts in image 1. |

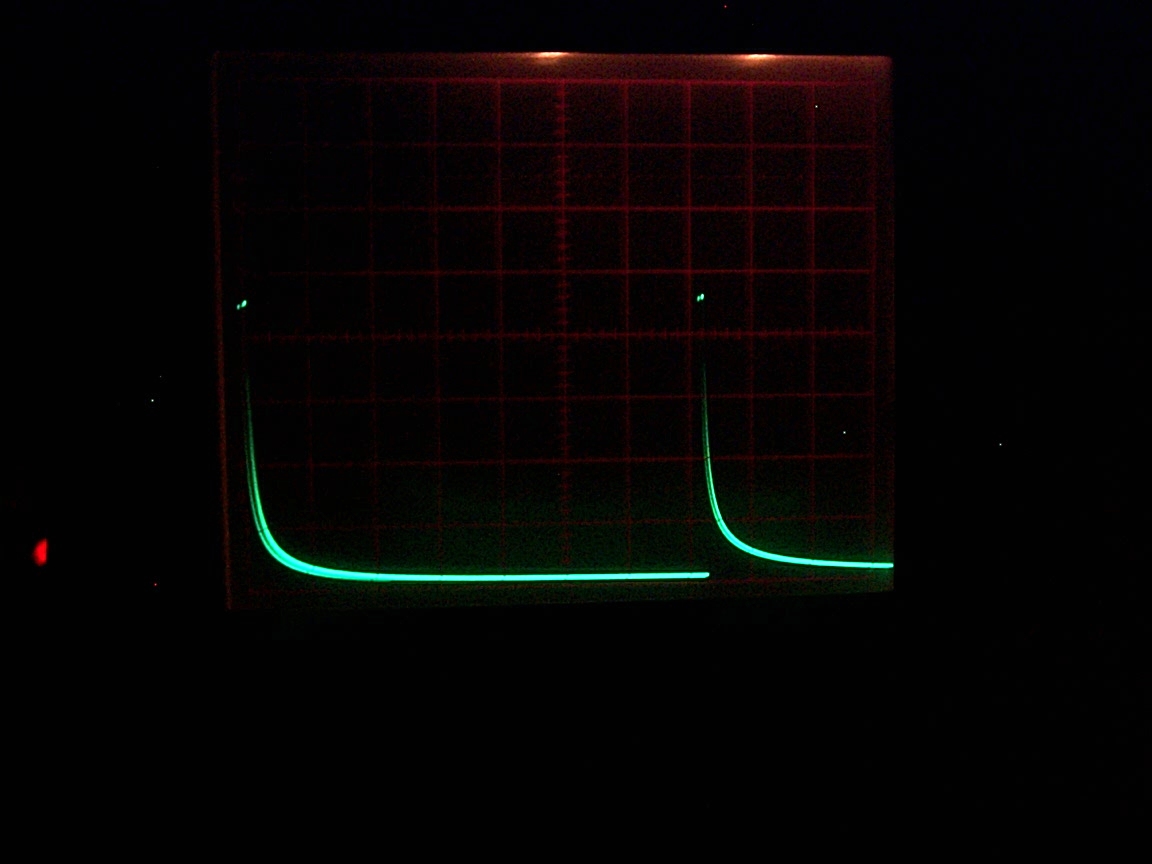

Image 3, but with a "good"
battery |

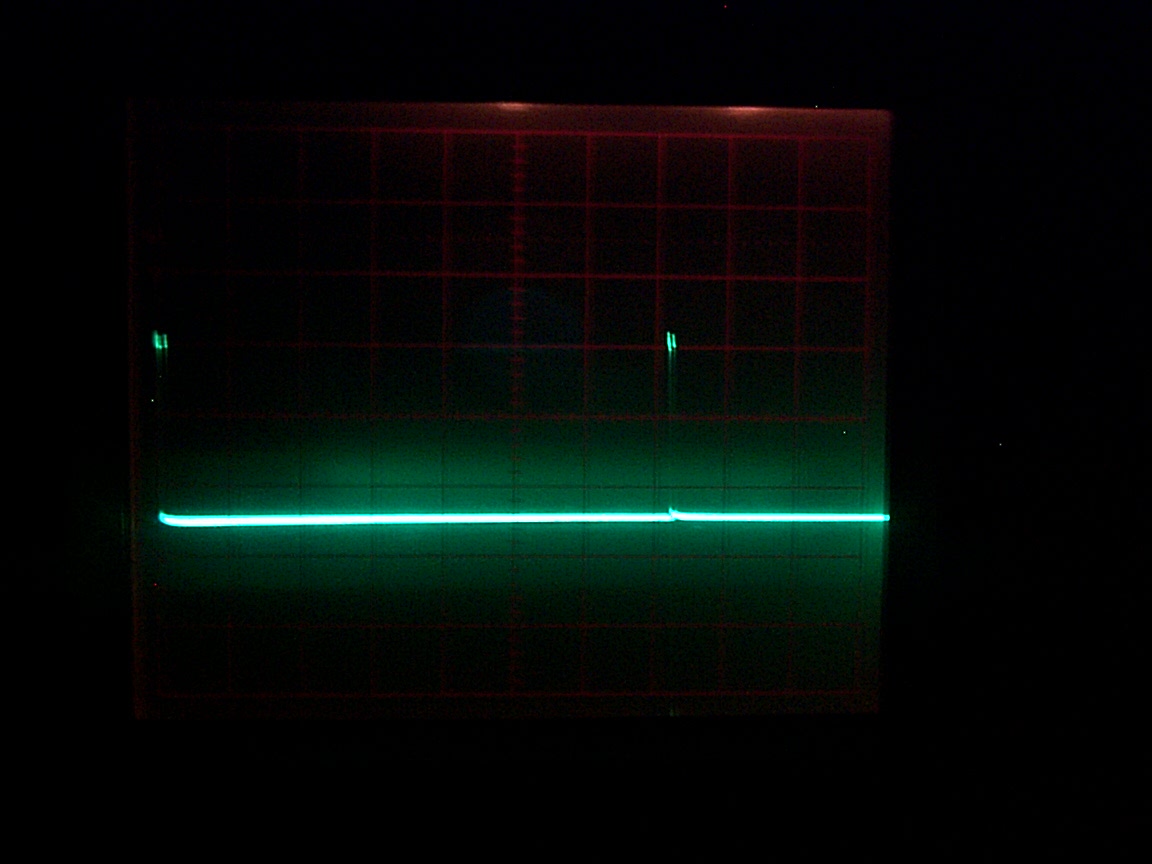

Not much chance for recovery of
this battery. |
 |
 |
 |

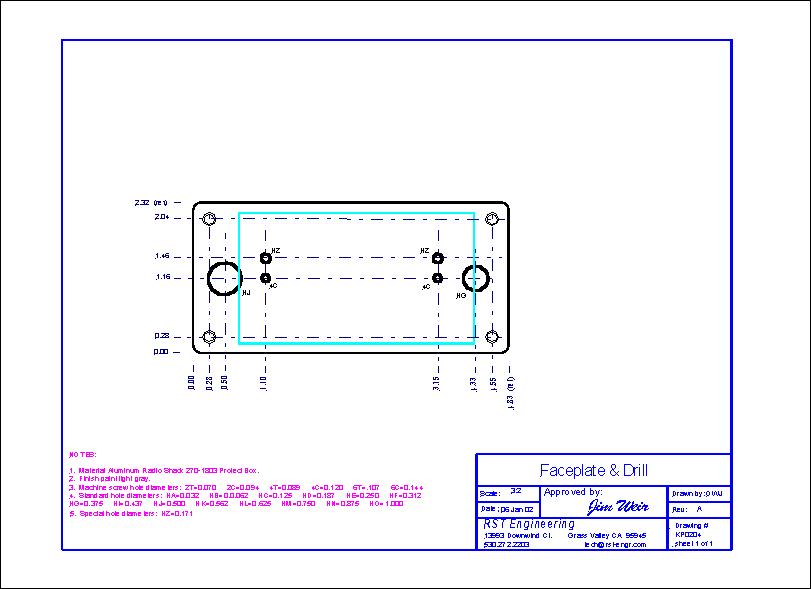

| Image 6 expanded | Faceplate artwork | There is no image 9 this month |
 |
 |
 |
| There is no image 10 this month | There is no image 11 this month | There is no image 12 this month |
Download The Full Text In PDF Format
Download The Parts List In PDF Format
Download The Oopsie Page In PDF Format
Jim Weir
jim@rst-engr.com
12 March 2002
