Kitplanes April 2000 |
 |
Transmitter Test Light |
WELCOME TO JIM WEIR'S
April 2000 Kitplanes Web Page
Kitplanes April 2000 |
|
Transmitter Test Light |

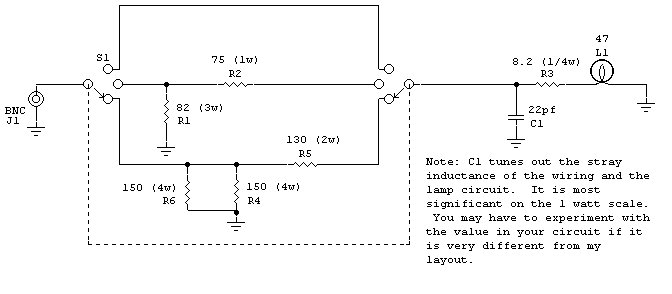

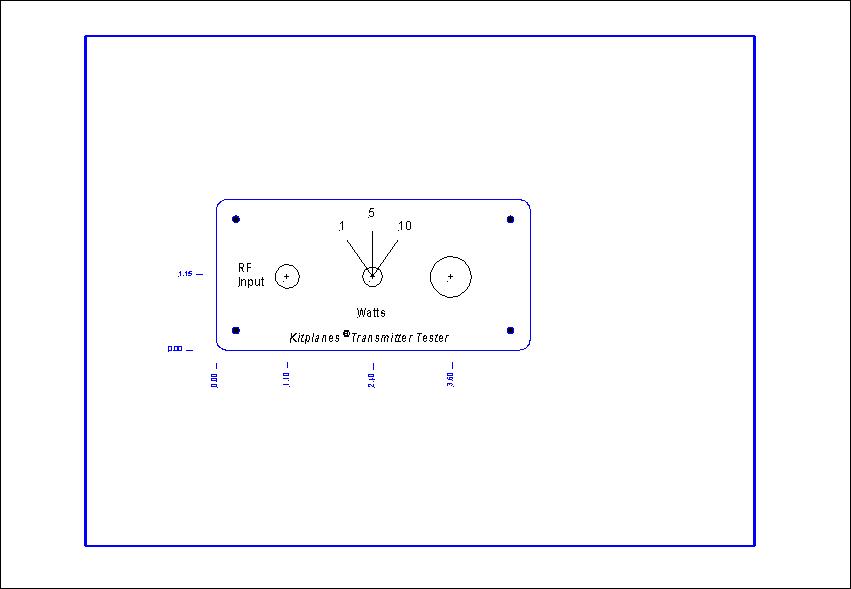

Click on schematic to download (wmf format) Click on schematic to download (jpg format) Front panel artwork
IMAGES (click on image to download)
 |
 |
 |

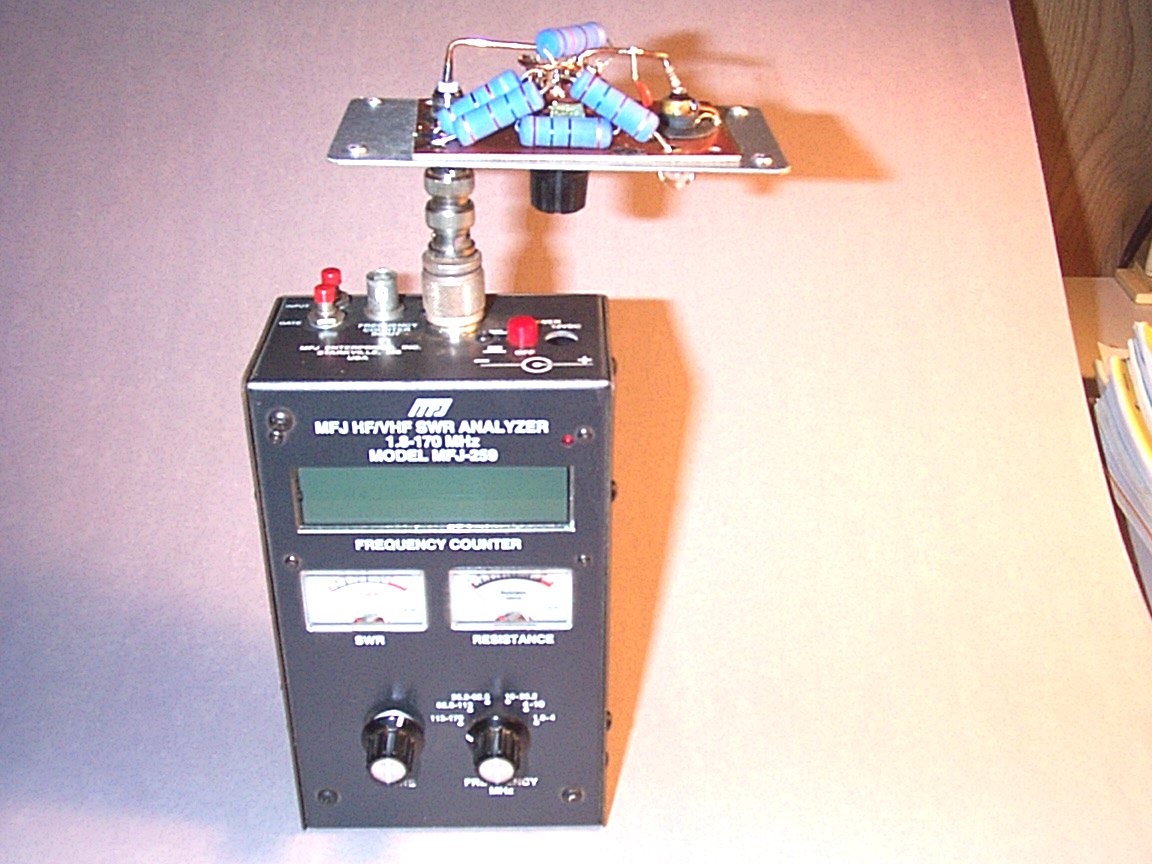

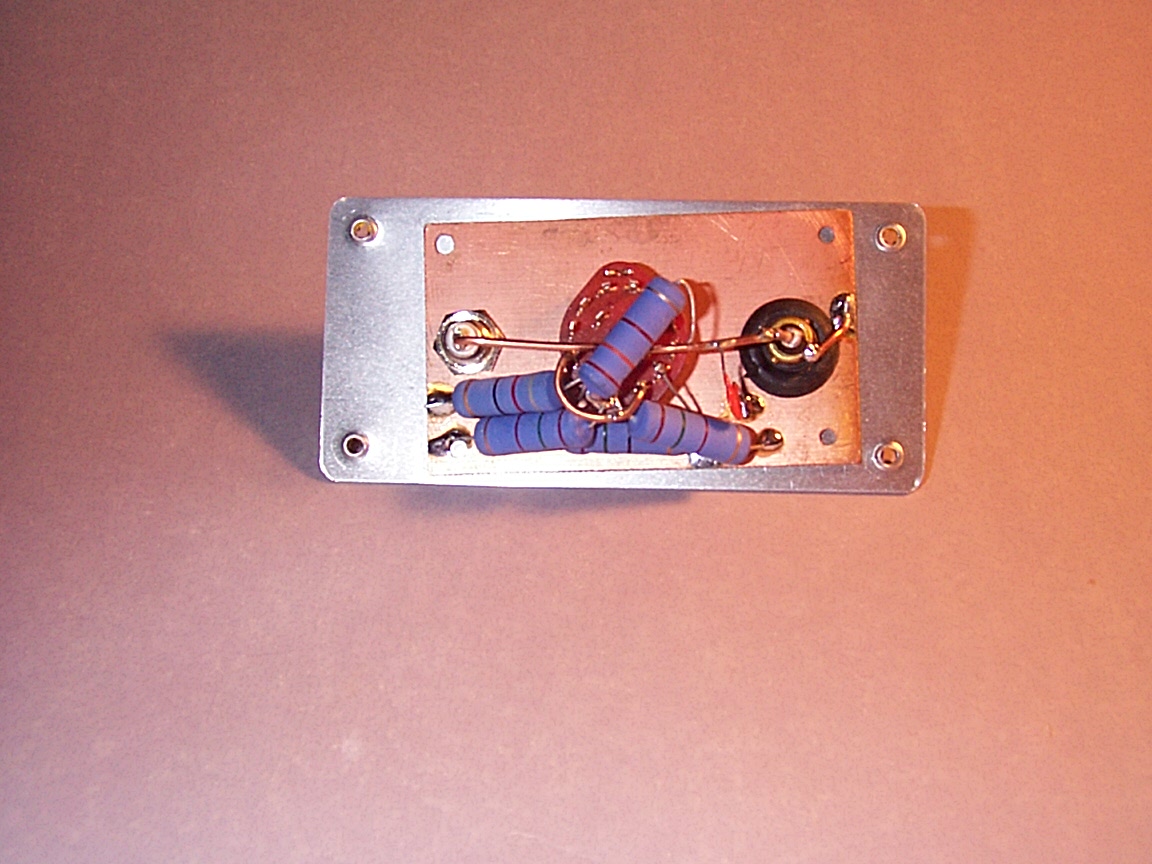

| Transmitter tester mounted on the | <-- Same | Inside of the chassis. Lamp is to the |
| "goodness" VSWR meter | right, input connector to the left. | |
 |
 |
 |

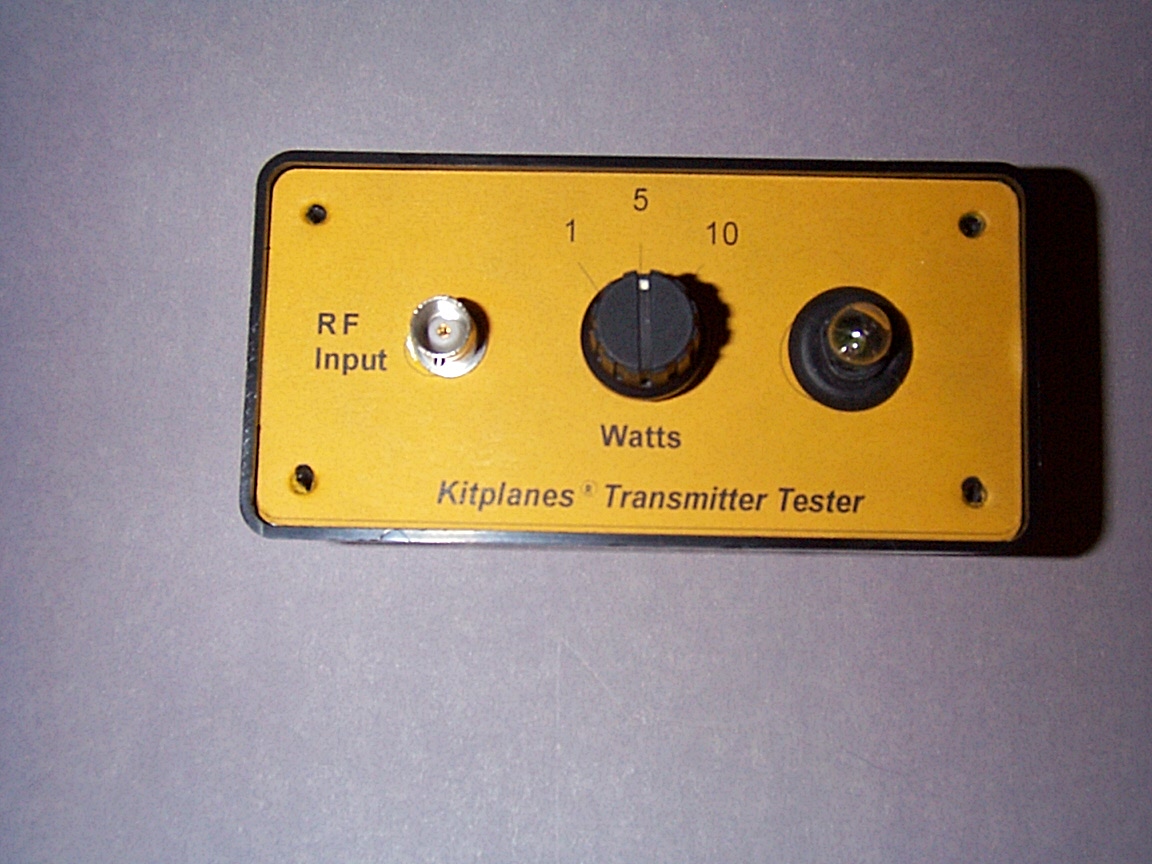

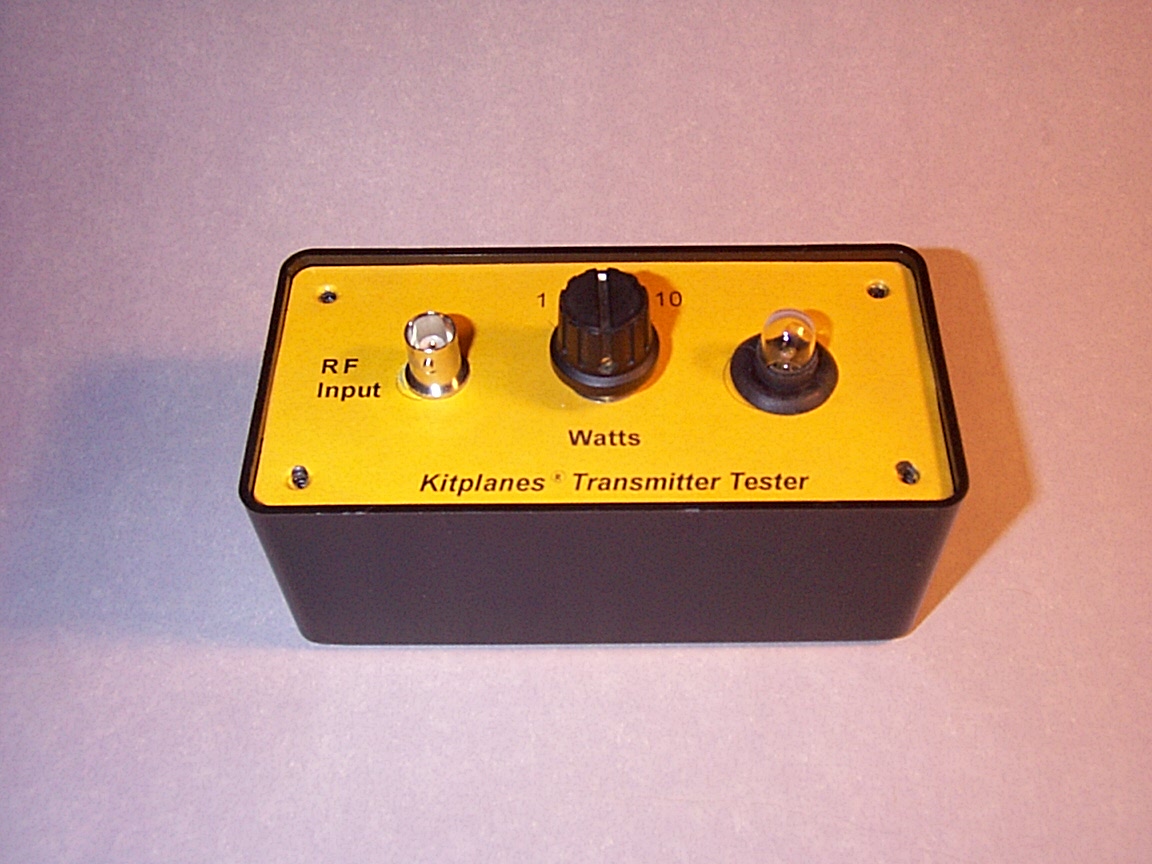

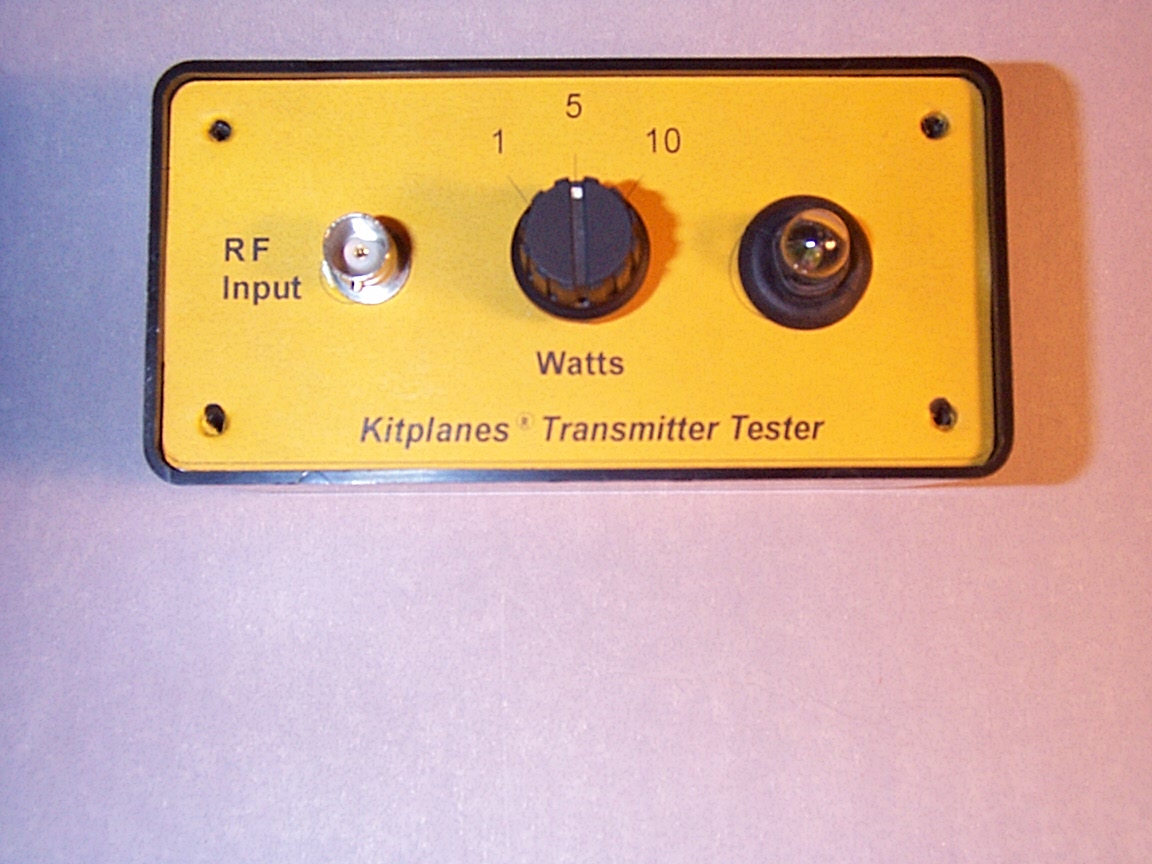

| Outside of the chassis | <-- Same | <-- Same |
 |
 |
 |

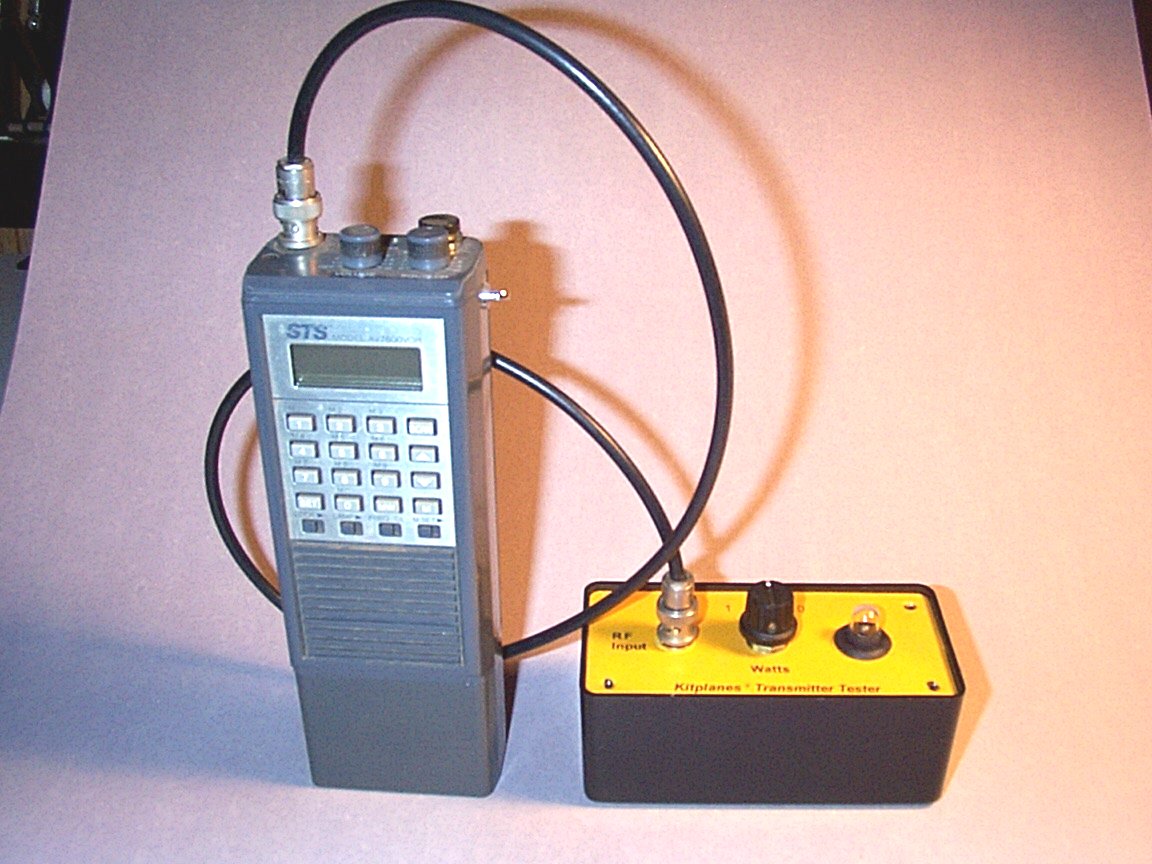

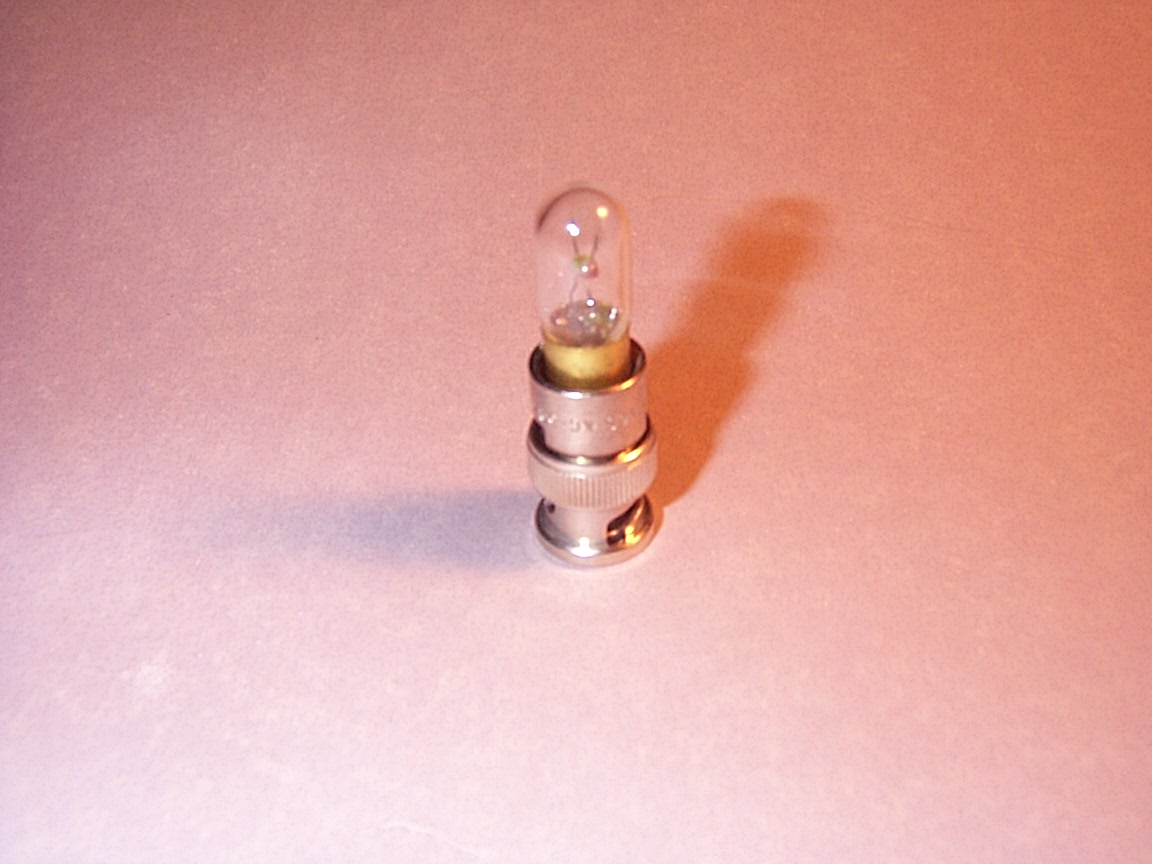

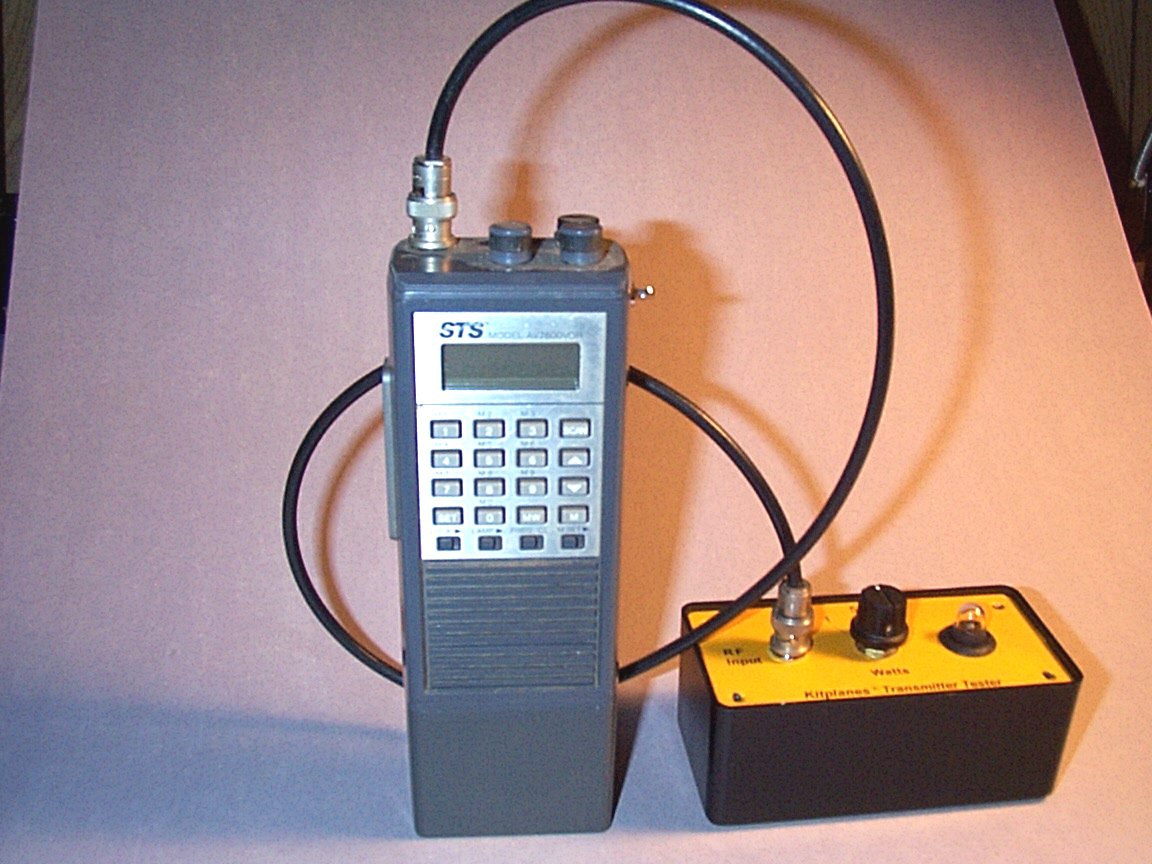

| Connected to a typical handheld | <-- Same | The economy model |
| transceiver | ||
 |
 |
 |
| No Picture 10 this month | No Picture 11 this month | No Picture 12 this month |
Download The Full Text In Word Format
Download The Parts List In Word Format
Download The Oopsie Page In Word Format
Jim Weir
jim@rst-engr.com
10 January 2000
